Ultralight 402


Travel 401/ 801
Travel
503/1003
* New for 2010

Base 401
Base 801

Cruise 2.0
Cruise 2R/4R


Power



The ultimate tool for kayak fishermen – or any paddler who wants to keep
moving while taking a rest.

This is how we define superior technology for kayakers:

• Weight of 15 lbs, that is of course including the battery
• Motor power equivalent to 1 HP gasoline outboard
• Top speed around 9 km/h, faster than any trolling motor on the market
• Range at slow speed (e.g. 4 km/h) up to 30 km
• Fully waterproof system
• GPS based calculation of remaining range
• Mountable to most rigid hull kayaks.


Mounting: Can be mounted on most rigid-hull kayaks with stainless steel cavity dowel pins.

Steering: Steering can be locked, after which kayak is steered with the paddle or the rudder. This results in a larger radius of turn. Alternatively, the motor can be connected to the rudder or the steering system of the boat, which makes it very maneuverable (e.g. for fi shing).

Watertightness: All motor components are watertight, protected against complete immersion.

Safety: The motor shuts off when the magnetic key on the remote throttle control is removed. Therefore, for safety reasons, the magnetic key should be attached to the wrist or the life vest. If the kayak capsizes, the motor shuts off automatically to avoid possible injury.

Battery charge time: When fully discharged, the charge time with the charger supplied is approximately 8 hours.

Lithium-manganese battery life expectancy: Charge cycles are not the main factor affecting the service life of the lithium-manganese battery. The battery does not have a memory-effect. Generally, a loss of capacity of 4% per year can be assumed. Ageing is accelerated if the battery is exposed to high temperatures for long periods and if it is stored fully charged for long periods.
Therefore, the battery can be used in very hot conditions, but should be removed from the sun and stored in a cool place when not used. If it is stored for a longer period of time, its charge status should be about 50%. If these instructions are followed, your battery will have a life expectancy of some 6-10 years.
Integrated battery specifications: The integrated battery has a capacity of 230 Wh, i.e. 8 Ah at 28.8 V..

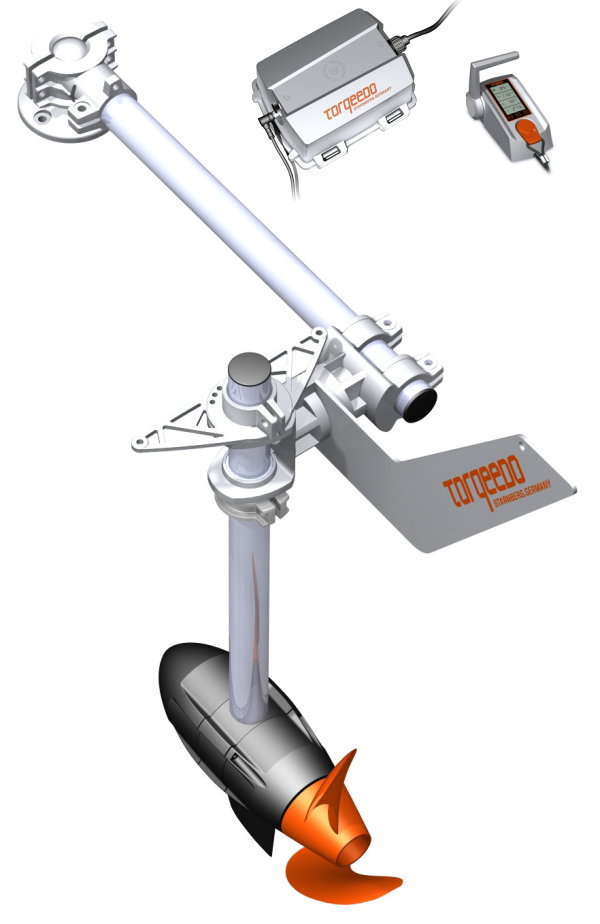

Torqeedo Ultralight 402, the kayak motor.

If you find anything in the world that even comes close, let us know.
